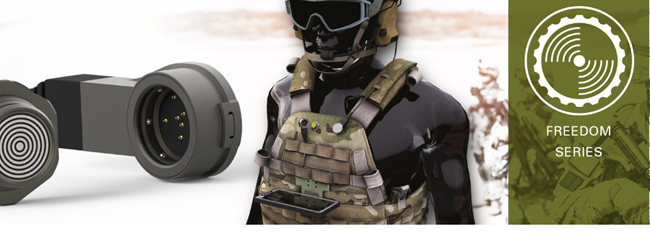

Fischer Connectors offers the new Fischer LP360™ connector as the first product of the Fischer Freedom™ Series. This connector facilitates integration, maximizes usability, and optimizes cable management for defense and security applications, even in the most demanding environments and conditions.
Eliminating the key code, this LP360™ connector offers 360° mating freedom for plugging and routing in any direction for use in smart vests. With no more twists and turns, these cables can be shorter in the kitted equipment, thereby reducing tangles, clutter, and excess weight. The cables are fully cleanable on both receptacle and plug sides. Cable free solutions are available through the integration of the LP360™ panel plug directly into the device’s housing.
Key Freedom™ Series LP360™ features:
Signal & power through 7 concentric-circle contacts
No key code for easy 360° mating freedom
Membrane-sealed surface contacts
Low profile and compact for easy and seamless integration
IP68 sealed to -20m/24h
Blind-mate, non-magnetic ball-locking mechanism
Robust stainless steel and brass design for longevity
Tested in line with MIL and IEC standards
Check out the videos below, or download the datasheet for more information on the Freedom™ Series LP360™ Connectors.
