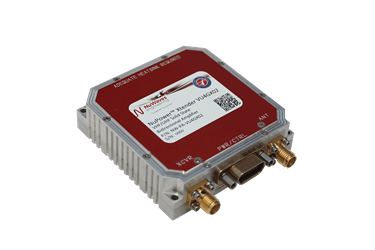

NuPower Xtender™ Bidirectional RF Amplifiers

NuPower Xtender™ Bidirectional RF Amplifiers

NuWaves offers the NuPower Xtender™ series of broadband state bidirectional amplifier modules designed for extending the communication range of half-duplex transceivers. They combine power efficiency, a compact size, and ruggedized packaging, making them an ideal amplifier solution for unmanned vehicles, ISR, tactical communications, and other applications with size, weight, and power consumption restrictions.

The NuPower Xtender™ amplifier modules utilize the latest Gallium Nitride (GaN) technology and market-leading design miniaturization techniques. The amplifiers are capable of supporting a wide range of modern waveforms and modulations, and contain rapid transmit auto-detection and switching, as well as an integrated LNA. Additional features include compact and rugged nickel-plated aluminum casings, reverse-voltage and over-voltage protection, over-current protection, thermal protection, and high efficiency linear operation on select models.

Download the brochure above or click the models below for more features and specifications:

Part Number

Min Freq.

Max Freq.

Output Power (Typical)

Tx Gain

Rx Gain

NW-BA-12B04A

1000 Hz

2500 Hz

10 Watts (typ)

35 dB

13 dB

NW-BA-12C04A

1000 Hz

2500 Hz

15 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-01

1000 Hz

1500 Hz

16 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-02

1000 Hz

2000 Hz

17 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-03

1435 Hz

1525 Hz

16 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-04

1435 Hz

1850 Hz

18 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-05

1435 Hz

2395 Hz

16 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-06

1500 Hz

2000 Hz

18 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-07

1500 Hz

2500 Hz

17 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-08

1755 Hz

1850 Hz

18 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-09

2000 Hz

2500 Hz

16 Watts (typ)

35 dB

13 dB

NW-BA-12B04A-10

2200 Hz

2395 Hz

16 Watts (typ)

35 dB

13 dB

NW-BA-VU-4-GX01

225 MHz

512 MHz

10 Watts (typ)

35 dB

15 dB

NW-BA-VU-4-GX02

225 MHz

512 MHz

10 Watts (typ)

35 dB

15 dB

NW-BA-C-10-RX01

4400 MHz

5100 MHz

10 Watts (typ)

10 dB

12 dB

NW-BA-C-10-RX02

4400 MHz

5100 MHz

10 Watts (typ)

10 dB

12 dB

NW-BA-C-20-RX03

4400 MHz

4900 MHz

20 Watts (typ)

43 dB

10 dB
